Introduction
Consider a cardiac housing with deep internal channels, multiple angled sealing surfaces, and compound curves that must maintain ±0.0001″ tolerances across every feature. Or a spinal cage with organic, patient-specific geometry and porous lattice structures that 3-axis machines simply cannot reach without multiple risky setups and costly fixtures.
These are the parts driving the next generation of medical devices – and they’re exposing the limits of traditional machining.
Life-critical and Class III components are growing more geometrically complex every year, while OEMs face relentless pressure to shorten development cycles, reduce costs, and hit aggressive launch dates. What worked for yesterday’s simpler implants and instruments no longer scales.
That’s where 5-axis medical CNC machining becomes not just advantageous, but essential.
In this article, we’ll show you exactly when 5-axis is the only practical solution for complex medical geometries, how it delivers dramatic reductions in setup time and total cost-per-part, and why leading device manufacturers are shifting critical programs to 5-axis cells that can run lights-out with validated processes.
What Makes a Medical Device Part “5-Axis Essential”?
Not every component needs 5-axis medical CNC machining. Many simple prismatic parts, basic turned components, and straightforward orthopedic plates machine perfectly well on 3-axis or Swiss-style equipment.
But a growing number of today’s most advanced devices cross a clear threshold where 5-axis becomes the only viable option.
Here are the four clear signals that a part is 5-axis essential:
Complex, Multi-Sided Geometry with Internal Features
Parts with deep cavities, undercuts, compound curves, or internal channels that cannot be accessed from a single plane almost always require 5-axis. Think cardiac housings with intricate sealing surfaces at multiple angles, respiratory manifolds with curved flow paths, or spinal cages that combine organic external shapes with internal lattice structures.
On a 3-axis machine, these features force multiple setups, custom fixtures, and frequent part handling — each one introducing risk of dimensional drift, contamination, or surface damage.
Tight Tolerances Across Intersecting Features
When you must hold ±0.0001″ (or tighter) across features that intersect at compound angles, tolerance stack-up on 3-axis becomes nearly impossible to manage. Every repositioning adds potential error. 5-axis machines eliminate this by machining all critical surfaces in one continuous setup, maintaining true positional accuracy and geometric dimensioning & tolerancing (GD&T) intent.
Difficult-to-Machine Materials Requiring Optimal Tool Approach
Titanium alloys (especially Ti-6Al-4V ELI) and cobalt-chrome work-harden quickly. The only way to maintain tool life, surface integrity, and consistent chip control is to use the ideal cutting angle and constant engagement — something only simultaneous 5-axis toolpaths can deliver reliably. Sub-optimal angles on 3-axis machines often result in premature tool failure, poor finishes, and out-of-tolerance parts.
Moderate-to-High Volume Where Setup Time Dominates Cost
Even at 500–5,000 pieces per year, the cumulative cost of multiple setups, fixture changes, and extended cycle times on 3-axis can exceed the higher hourly rate of a 5-axis cell. When you factor in reduced scrap, faster first-article approval, and lower labor content, 5-axis frequently becomes the lower total-cost solution well before true high-volume production.
The bottom line: If your part has complex multi-axis geometry, tight positional tolerances, or is made from work-hardening materials — and especially if you plan to scale beyond a few hundred pieces — 5-axis is no longer optional. It’s the difference between a part that’s chronically difficult and expensive to produce… and one that runs cleanly and profitably.
5-Axis Essential Criteria at a Glance
| Criterion | What It Looks Like | Typical Medical Examples | Risk of Using 3-Axis Only |
|---|---|---|---|
| Complex multi-sided geometry | Deep cavities, undercuts, compound curves | Cardiac housings, spinal cages | High (multiple risky setups) |
| Tight tolerances across angles | ±0.0001″ positional tolerance on intersecting features | Sealing surfaces, angled screw holes | Very High (tolerance stack-up) |
| Difficult-to-machine materials | Titanium & cobalt-chrome that work-harden | Orthopedic implants, cardiac components | High (tool wear & poor finish) |
| Moderate-to-high volume | 500–10,000+ pcs/year where setup time dominates cost | Most production programs | Medium (cumulative hidden cost) |
The Real Cost & Time Savings of 5-Axis Machines in Medical Manufacturing
The biggest misconception about 5-axis machining is that it’s “more expensive” because the hourly machine rate is higher. In reality, for complex medical parts, 5-axis almost always delivers lower total cost — often by 25–40% — once you account for everything that actually drives program cost.
Here’s where the savings come from:
Dramatic Setup Reduction
A typical complex medical part that requires 4–7 separate setups on a 3-axis machine (with custom fixtures, probing, and realignment between each) collapses to one single setup on 5-axis.
That’s not just labor savings. Every additional setup introduces risk of misalignment, contamination, extra inspection steps, and longer first-article approval times. On programs running 2,000–10,000 pieces per year, eliminating 5–6 setups can easily save 30–50% of total manufacturing labor content.
Faster Cycle Times Through Simultaneous Machining
5-axis allows true simultaneous toolpaths that keep the cutter engaged at optimal angles the entire time. On titanium and cobalt-chrome parts, this often reduces cycle time by 20–35% compared with 3-axis repositioning strategies — even before you factor in the eliminated setups.
Lower Scrap and Rework Rates
Fewer handlings = dramatically lower risk of damage, contamination, or dimensional drift. Medical OEMs consistently report 40–60% scrap reduction when moving complex parts from multi-setup 3-axis processes to single-setup 5-axis. At scale, that scrap reduction alone can pay for the difference in machine rate.
Hidden but Significant Savings
- Fixturing cost: One 5-axis fixture vs. multiple 3-axis fixtures (often $8k–$25k savings per part family)
- Inspection burden: Fewer datums to check, fewer setups to qualify
- Time-to-market: First-article approval in days instead of weeks
- Capacity: One 5-axis cell with pallet automation can replace multiple 3-axis machines
Example: Running the numbers on a cardiac device housing program, the move from a 6-setup 3-axis process to single-setup 5-axis would reduce total cost-per-part by 31% at 4,000 pieces per year, even though the 5-axis machine rate is 40% higher. Lead time would drop from around 6 weeks to 11 days and CpK improve from 1.12 to 1.68.
Typical Results: 3-Axis vs 5-Axis (Cardiac Housing Example at 4,000 pcs/year)
| Metric | 3-Axis (6 setups) | 5-Axis (1 setup) | Improvement |
|---|---|---|---|
| Number of setups | 6 | 1 | -83% |
| Cycle time per part | 48 minutes | 31 minutes | -35% |
| Scrap rate | 8.2% | 2.1% | -74% |
| Cost per part | $187 | $129 | -31% |
| Lead time (prototype to production) | 6 weeks | 11 days | -74% |
| CpK (critical dimension) | 1.12 | 1.68 | +50% |
5-Axis vs 3-Axis vs Swiss Turning – When Each Wins
Choosing the right machining process for a medical part isn’t about which technology is “best.” It’s about matching the process to the part’s geometry, tolerance requirements, material, and volume. Here’s a practical decision framework we use with OEMs every day.
When 3-Axis CNC Milling (or 3-Axis + Indexing) Is the Right Choice
- Simple prismatic parts with features on 3–4 sides
- Parts that can be fully machined with standard workholding and minimal repositioning
- Lower complexity orthopedic plates, brackets, and enclosures where ±0.001″–0.002″ tolerances are acceptable
- Lower-volume programs (under 300–500 pcs/year) where the higher hourly rate of 5-axis isn’t justified
Rule of thumb: If the part can be machined in 1–2 setups on a 3-axis mill with good surface finish and no tolerance stack-up issues, stay with 3-axis.
When Swiss Turning (or Multi-Axis CNC Turning) Wins
- Small, high-precision turned parts (bone screws, pins, catheter components, dental abutments)
- Parts with tight OD/ID tolerances and long, slender geometries
- High-volume production where cycle time per piece is the dominant cost driver
- Diameters under ~1.25″ where the guide bushing provides superior support
Swiss excels at speed and precision on cylindrical or near-cylindrical parts, but it struggles with true 5-sided prismatic geometry or large undercuts.
When 5-Axis Is Non-Negotiable
- True 5-sided complexity or organic shapes
- Internal features, deep cavities, or undercuts that can’t be reached from one plane
- Compound-angle holes or sealing surfaces that must maintain positional tolerance across multiple datums
- Work-hardening materials (titanium, cobalt-chrome) where optimal tool approach angles are critical
- Programs where total cost (including setups, scrap, fixturing, and lead time) favors single-setup machining
Hybrid sweet spots also exist: Many programs use 5-axis for the complex, tight-tolerance core features and then move to secondary operations (EDM, grinding, or 3-axis) for simpler finishing steps. This hybrid approach may deliver the best balance of quality, cost, and throughput.
Quick Decision Matrix
| Part Characteristic | Best Process | Why |
|---|---|---|
| Small turned parts, high volume | Swiss | Fastest cycle time, excellent support |
| Simple prismatic, 3–4 sides | 3-Axis + indexing | Lowest cost per setup |
| Complex 5-sided geometry, undercuts | 5-Axis | Single setup, best accuracy |
| Mixed features + high volume | 5-Axis hybrid | Core complexity + efficient secondary ops |
| Patient-specific / organic shapes | 5-Axis | Only practical way to machine freeform geometry |
The key is making this decision early – ideally during the DFM phase – rather than forcing a part through the wrong process and paying for it later in scrap, delays, and cost overruns.
How Leading Shops Execute 5-Axis Medical Parts at Scale
Having the right 5-axis machine is only the starting point. What separates shops that can reliably deliver complex medical parts from those that struggle is the full ecosystem around the machine – software, fixturing, metrology, tooling, and automation.
Here’s what best-in-class execution looks like:
Machine & Software Requirements
True 5-axis medical work demands simultaneous 5-axis capability (not just 3+2 positioning), advanced collision avoidance, and high-end CAM software with robust toolpath optimization. The machine must maintain sub-micron repeatability even during long, uninterrupted cuts on titanium or cobalt-chrome.
Equally important is the ability to run proven, validated processes. Leading shops maintain a library of validated 5-axis toolpaths and cutting parameters for common medical materials and geometries thus dramatically reducing development time on new parts.
Workholding & Traceability
Every fixture must support full traceability (melt lot, heat number, serial number) while maintaining the rigidity and repeatability required for tight tolerances. Common solutions include:
- Custom tombstone or vacuum fixtures for cardiac or orthopedic components
- Modular quick-change systems that allow rapid family-of-parts changeovers
- Integrated probing routines that automatically verify part location and datum alignment before cutting begins
The goal is zero manual intervention between setups which is critical for both quality and regulatory compliance.
In-Process Metrology & Closed-Loop Control
The best 5-axis cells for medical integrate on-machine probing and vision systems that feed real-time data back into the process. This enables:
- Automatic tool-length and diameter compensation
- In-cycle part inspection with automatic offset correction
- Statistical process control (SPC) data collection directly from the machine
When combined with post-process CMM and surface-finish verification, this closed-loop approach delivers the CpK levels medical OEMs demand.

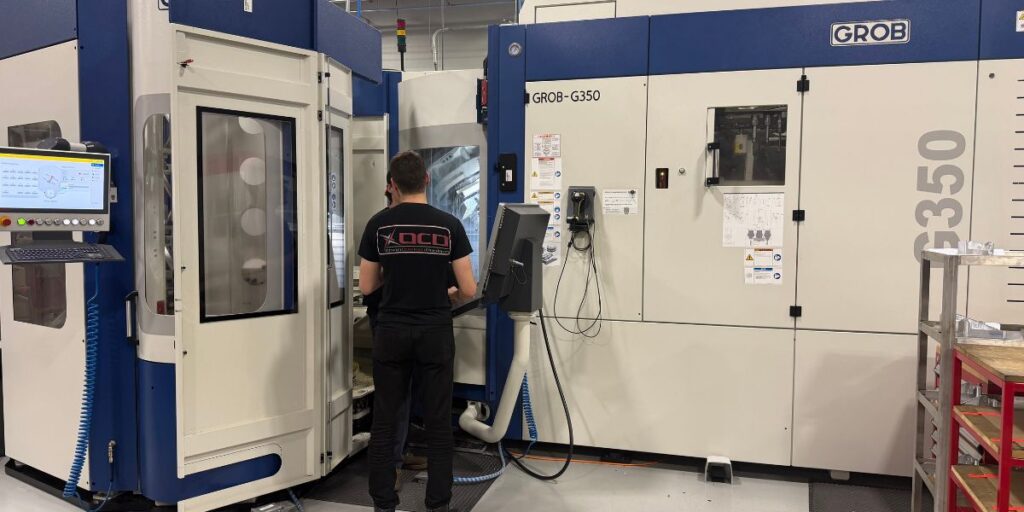

Lights-Out & High-Volume Capability
The real game-changer for scaling complex medical parts is pallet-pool automation paired with 5-axis. A single cell with 20–40 pallet positions can run continuously with minimal operator intervention, turning what used to be low-volume, high-mix work into reliable, cost-effective production.
This is exactly how shops like Olson Custom Designs run cardiac housings, spinal implants, and complex surgical instruments at production volumes while maintaining 93%+ on-time delivery and full ISO 13485 traceability.
Bottom line: 5-axis success at scale isn’t just about the machine – it’s about the validated processes, fixturing strategy, in-process metrology, and automation layer that turn a capable machine into a reliable, high-volume medical manufacturing cell.
Real Medical Industry Applications That Demand 5-Axis
While 5-axis can be used across many medical components, certain applications have made it the clear standard. Here are the parts where 5-axis is not just better — it’s often the only practical way to achieve the required geometry, tolerance, and surface integrity at production volumes.
Cardiac & Defibrillator Housings
These complex enclosures combine deep internal pockets, multiple angled sealing surfaces, and compound external curves — all while maintaining hermetic seal integrity and strict biocompatibility requirements.
Why 5-axis is non-negotiable: Multiple compound-angle features must align perfectly in a single setup. Any repositioning introduces risk of seal-surface misalignment or contamination. 5-axis delivers the required positional accuracy and surface finish in one continuous operation, dramatically reducing validation time and scrap risk.
Spinal Cages & Interbody Fusion Devices
Modern spinal implants often feature organic, lordotic shapes, integrated porous lattice structures, and angled screw or graft windows that vary by patient anatomy.
Why 5-axis is non-negotiable: The combination of freeform external geometry and precise internal features (especially porous structures designed for osseointegration) cannot be machined accurately on 3-axis without excessive setups and risk of lattice damage. 5-axis enables true 5-sided machining while preserving delicate internal structures.
Custom & Patient-Specific Orthopedic Implants
Patient-specific knee, hip, and shoulder components are becoming more common. These parts feature highly contoured surfaces, unique fixation geometries, and tight mating tolerances with off-the-shelf components.
Why 5-axis is non-negotiable: Every part is essentially a one-off with unique geometry. 5-axis eliminates the need for part-specific fixtures and allows rapid changeover between patient-specific designs while maintaining the tight tolerances required for proper fit and function.
Minimally Invasive Surgical (MIS) Tools & Endoscopic Components
Curved instrument shafts, internal actuation channels, and micro-scale features for laparoscopic or robotic surgery tools present extreme access challenges.
Why 5-axis is non-negotiable: Long, slender parts with internal curved features and compound angles are nearly impossible to machine on 3-axis without breaking through walls or losing positional accuracy. 5-axis provides the reach and angle control needed while maintaining the smooth, burr-free surfaces critical for patient safety.
Dental & Maxillofacial Components
Custom abutments, bars, and maxillofacial reconstruction plates require highly contoured, organic surfaces that must mate precisely with soft tissue and bone.
Why 5-axis is non-negotiable: The combination of aesthetic contouring, precise mating surfaces, and thin-wall sections demands simultaneous 5-axis machining to achieve the required surface quality and fit without secondary hand-finishing.
5-Axis Medical Applications Summary
| Application | Key Challenge | Why 5-Axis Wins | Typical Annual Volume |
|---|---|---|---|
| Cardiac / Defibrillator Housings | Compound curves + multiple sealing surfaces | Single-setup alignment + hermetic integrity | 1,000 – 15,000 |
| Spinal Cages & Interbody Devices | Porous lattice + organic lordotic shape | Preserves delicate internal structures | 2,000 – 50,000 |
| Patient-Specific Orthopedic Implants | Unique geometry per patient | No part-specific fixtures needed | 100 – 5,000 |
| MIS / Endoscopic Tools | Curved internal channels + micro-features | Reach and angle control impossible on 3-axis | 5,000 – 100,000+ |
| Dental & Maxillofacial Components | Highly contoured mating surfaces | Superior surface finish + precise fit | 500 – 20,000 |
The pattern is clear: Any medical part with true 5-sided complexity, internal features, compound angles, or patient-specific geometry has moved – or is rapidly moving – to 5-axis as the default process. The shops that have invested in the full 5-axis ecosystem (machines, fixturing, metrology, and automation) are the ones winning these programs.
Conclusion: Match Complexity to Process
When a part has true 5-sided complexity, internal features, compound angles, or patient-specific geometry, 5-axis CNC is no longer a luxury – it’s the most reliable path to on-time, on-spec, and cost-effective production. The shops that have built the full ecosystem (machines, validated processes, medical-grade fixturing, in-process metrology, and pallet automation) are the ones consistently winning these programs.
The OEMs winning today are the ones who make the process decision early, during DFM, rather than discovering too late that their part requires 5-axis after they’ve already invested in the wrong approach.
